Horse Drawn Stagecoaches, Buckboards & Wagons
(Click on Thumbnail to Enlarge Image and View Description)
-

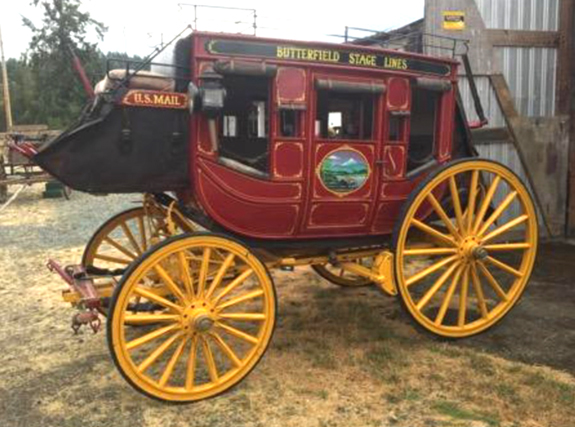

Wells Fargo Stagecoach
Reproduction of an early 1880's Wells Fargo Stagecoach as built by Abbott & Downing.
We took measurements for this Wells Fargo Overland Butterfield Stagecoach from the one at the Chicago Museum of Science and Industry. Components of the running gear assembled from Amish shops in Indiana and Ohio.
The Concord coach is full scale, seating up to 16 or so--inside with the driver and on the upper rear. Leather or simulated leather seats and movable bench inside; fabric-finished walls and headliner.
The stagecoach is an exact replica with three exceptions: We've added hydraulic brakes along with the manual brakes (as required by most insurance companies for passenger services), channel and rubber edging on wheels, and roller-bearing axles (historically correct exterior). Steel-rimmed wheels available on request.
Decorative scrollwork on request. Complete with extensive leather (10 hides) on the boot, window rolls, driver's seat boot and heavy thorough brace suspension system. This coach rolls gently as it moves. Comes with pole for use with two or four horses.
Solid wood construction
Richly applied Dupont automotive paint, red body with yellow gear
Leather thoroughbraces
Leather trunk, drivers boot, side curtains and mail bag
Hydraulic brake system
Tapered roller bearing hubs
Short turn fifth wheel with 21" turning radius
Equipped for two, four or six hitch
Steel spreader bar
Stainless steel chains
Channel and rubber tires
Lamp brackets
Coach lamps - electric or candle (sold separately)
Pinstriped body and gear
Hand painted eagle on doors or design of your choice
Your choice of name on roof sign
Options: Custom colors
If you do not need a particular feature, we will deduct it from the price.
Covers are also available for purchase.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

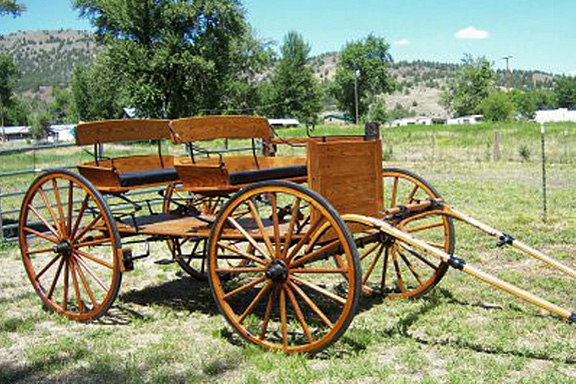

Buckboard
The following describes our standard horse size two seated Buckboard; draft horse and pony size buckboards are also available. Buckboards are a normal stocking item for us.
The Buckboard comes hardwood-built body including the single horse shaves, and it can be finished with a clear coat or stained and clear coated in our western finish or stain of your choice. Slated floor, wooden dash that includes a black metal rein rail and whip socket.
Our buckboards feature: Vinyl upholstered seat with back rests, iron trim arm rests, passenger body entry steps, heavy duty short turn fifth wheel, seat suspension consists of two elliptical leaf springs 1-1/2" wide by 24" long. Brake system is the antique style rear wheel rub break.
Overall length: 9' 8"
Width: 68"
Height: 58"
Axles: 1-1/8" roller bearing style
Overall length 68"
Heels: Wood wheels are finished with 1.5"
Solid rubber tire, roller bearing hubs.
Wheels measure 38" front, 42" rear
Options: Polished brass fancy rein rail
Axle steps $$50.00
Detachable "Slow Moving Sign" $35
Pole, evener, yoke to match complete
For More Info On This Item: wagons@oxbowwagonsandcoaches.com
-

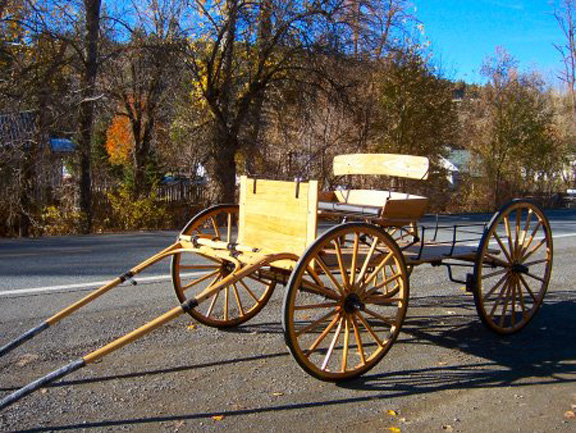

Single Seat Buckboard
The following describes our standard horse size single seated Buckboard; draft horse and pony sizes are also available.
The Buckboard comes hardwood-built body, including the single horse shaves, stained a color of your choice and clear coated or stained and clear coated in our darker stained finish. Slatted floor, wooden dash, that includes a black metal rein rail and whip socket.
Features: Vinyl upholstered seat with back rest, iron trim arm rests passenger body entry steps, heavy duty short turn fifth wheel, seat suspension consists of two elliptical leaf springs 1-1/2" wide by 24" long.
Brake system is the antique style rear wheel rub break.
Overall length: approx 112"
Width: 70"
Height: 57"
Axles: 1-1/8" roller bearing style.
Overall length 68"
Wheels: Wood wheels are finished with
1-1/2" solid rubber tire, roller bearing hubs.
Wheels measure 38" front, 42" rear
Options: Added passenger seat,
complete with pad $390
Polished brass fancy rein rail $60
Axle steps $50
Detachable slow moving sign $35
Pole, evener, yoke to match, complete
For More Info On This Item:
wagons@oxbowwagonsandcoaches.com
-

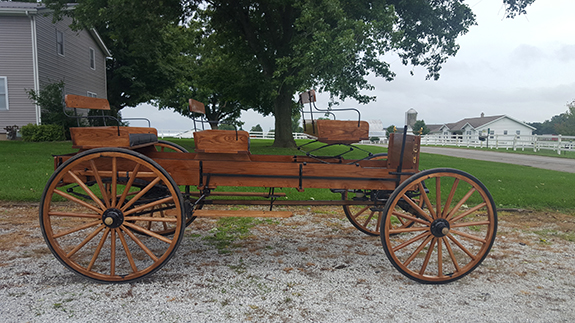

Ranch Wagon, Three Seater
Hardwood-built body, tongue & groove floor, removable tailgate, wood dash. Measures 88" long, 40" wide.
Sides are 10" high with sloping drop from seat to dash.
Features: Wood seats with iron trim and backrest, roller bearing type axles: heavy duty, short-turn fifth wheel, three elliptical leaf springs (one in front is 5-leaf: two in rear are each 4-leaf).
Old time manual brakes included: hydraulic brakes optional. Wood wheels are finished with 1.5" solid rubber rim (steel available upon request). Wheels measure 38" front, 42" rear.
Matching shaves: $195.00
Matching pole with neck yoke: $320.00
Options: upholstery, hydraulic brakes
manual brakes.
Our ranch wagons are popular for ranch or farm use, providing a comfortable ride. Also available to specified color. Finished out with black iron and brass trim.
For More Info On This Item:
wagons@oxbowwagonsandcoaches.com
-
Farm Ranch Wagon
Hardwood-built body, tongue & groove floor, hinged tailgate, wood dash. Measures 880" long, 40" wide. Sides are 10" high with sloping drop from seat to dash.
Features: Wood seat with iron trim and backrest, roller bearing type axles: heavy duty, short-turn fifth wheel, three elliptical leaf springs (one in front is 5-leaf: two in rear are each 4-leaf). Old time manual brakes included: hydraulic brakes optional. Wood wheels are finished with 1.5" solid rubber rim (steel available upon request). Wheels measure 38" front, 42" rear.
Matching shavesor: $295
Matching pole with neck yoke: $390
Second Seat: $390
Options: upholstery, hydraulic brakes, manual brakes
Our ranch wagons are popular for ranch or farm use, providing a comfortable ride. Also available to specified color. Finished out with black iron and brass trim
Call for price on a two or three seater.
For More Info On This Item:
wagons@oxbowwagonsandcoaches.com
-

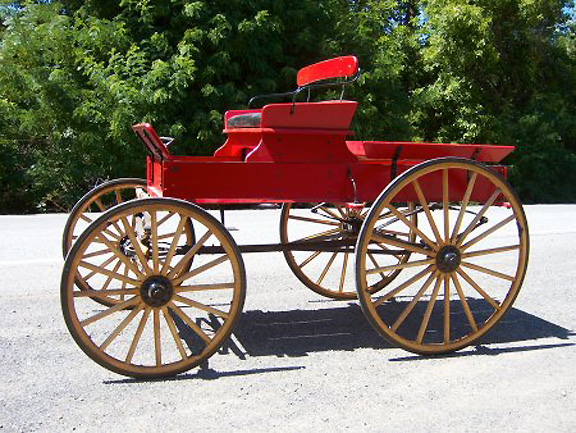

Side Board Delivery Wagon
This side board delivery wagon can be built in standard, draft horse and pony sizes.
The wagon comes with a hardwood-built body including the single horse shaves, and it can be finished with a clear coat, stained, and clear coated in our new western finish or just painted the color of your choice.
For More Info On This Item:
wagons@oxbowwagonsandcoaches.com

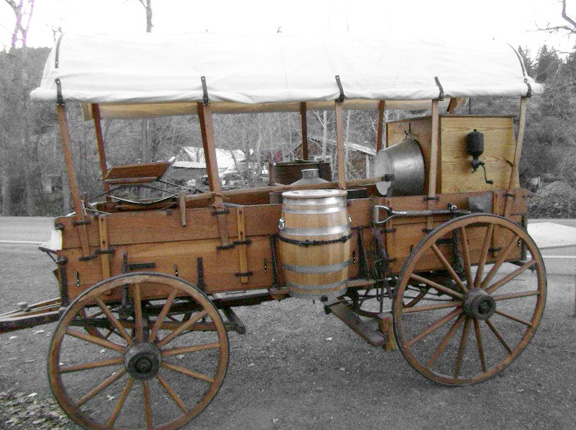

Horse-Drawn Chuckwagons
-

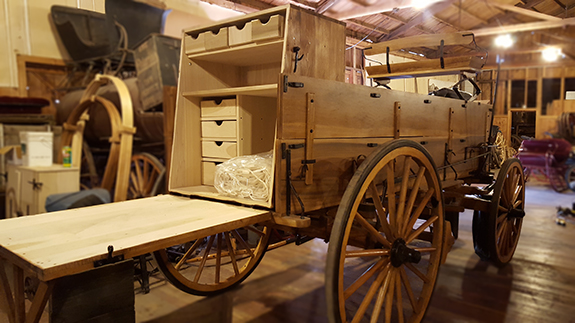

Chuckwagon
An example of one of our custom Chuck Wagons.
We have a number of antique wagons in stock that can be made into Chuck Wagons or we can build a complete new Chuck Wagon from new materials.
Prices vary according to choice of wagon and materials.
Measurements: Varies to your needs.
For More Info On This Item:
wagons@oxbowwagonsandcoaches.com
-
Chuckwagon
Chuckwagons can be made new like this one pictured or made up from a used standard box wagon that we stock.
Draft size horse or light size team. New the chuck wagon comes with hardwood-built body. It has tongue and groove floor, hinged tailgate, and wooden dash.
Measures: Varies to your needs.
For More Info On This Item:
wagons@oxbowwagonsandcoaches.com
-
Chuckwagon (large draft horse)
Chuckwagons can be made new like this one pictured or made up from a used standard box wagon that we stock.
Draft size horse or light size team. New the chuck wagon comes with hardwood-built body. It has tongue and groove floor, hinged tailgate, and wooden dash.
Measures: Varies to your needs.
Features: Wood seats with iron trim and back rests, roller bearing type axles; heavy duty, short-turn fifth wheel, three spring gear. Old time manual brakes included.
Wood wheels are finished with solid rubber rim (steel tire available upon request). Extras that are also included are the chuck box which has a hinged door with enclosed drawers and shelves the canvas and bows, and the water barrel.
Wagon Price: depends on what extras you are wanting or needing.
Matching Shaves: $295.00
Options: Matching team pole with neck yoke and double tree $390.00
Upholstery, hydraulic brakes optional.
Measures: Varies to your needs.
For More Info On This Item:
wagons@oxbowwagonsandcoaches.com
-
Chuckwagon (standard horse)
Standard size horse or light size team Chuckwagon comes with a hardwood-built body and single horse shaves or team pole. It has a tongue and groove floor, hinged tailgate, and wood dash.
Measures 880" long, 40" wide. Sides are high with sloping drop from seat to dash.
Features: Wood seat with iron trim and backrest, roller bearing type axles; heavy duty, short-turn fifth wheel, three elliptical leaf springs (one in front is 5-leaf; two in rear are each 4 leaf).
Old time manual brakes included. Wood wheels are finished with 1-1/2" solid rubber rim (steel tire available upon request). Wheels measure 38" front, 42" rear.
Extras that are also included are the chuck box which has a hinged door with enclosed drawers and shelves the canvas and bows, and the water barrel.
Matching Shaves: $295.00
Options: Matching team pole with neck yoke and double tree $390.00
Second seat with seat pad $350.00
Upholstery, hydraulic brakes optional.
For More Info On This Item:
wagons@oxbowwagonsandcoaches.com
Horse Drawn Carriages, Buggy's & Surreys
-

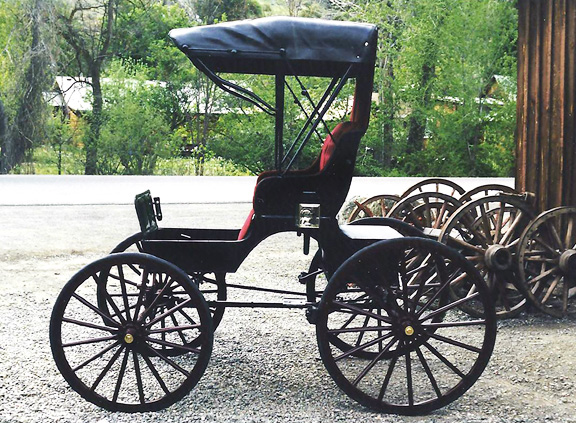

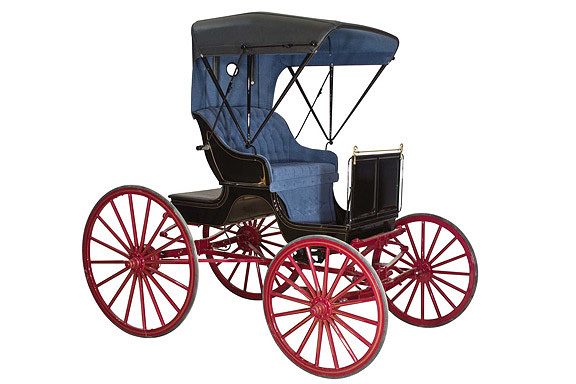

Horse Drawn Doctor's Buggy
Wood construction, steel-reinforced for strength and durability. Cut under design for ease and safety in turning. Roller bearing axles; front and rear elliptical springs. 40" seat; tuft & button upholstery. Fold-down auto top with rear window.
Overall length: 83"
Width: 56" excluding hubs
Wheels: 38" diameter front,
42" diameter rear
Standard colors: black box with either dark green or burgundy running gear. Upholstery & headliner to compliment gear. Gold pin-striping on body and wheels.
Options: Pole with neck yoke, hydraulic brakes, carriage lamps & brackets.
Custom paint and upholstery upon request.
Top Buggy with matching shaves.
Matching Pole with neck yoke extra.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

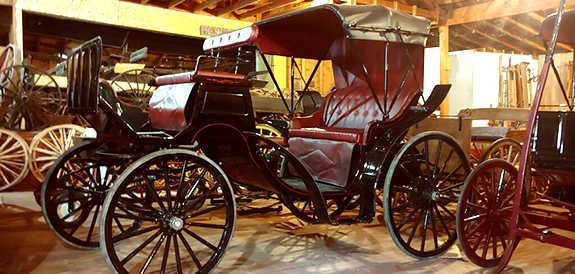

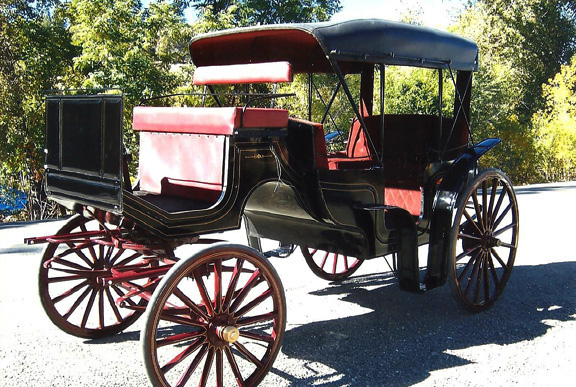

Horse Drawn Victoria Carriage
Wood construction with steel reinforcement for strength and durability. Roller bearing axles; cut under design for better turning and safety.
Folding auto top with rear window; seats elegantly upholstered in tuft and button design.
Standard body colors are white or black with burgundy crushed velvet upholstery and headliner. We can a build a Horse Drawn Victoria Carriage in any color that you desire.
Special paint or fabric upon request. Decoratively pin-stripped in gold.
We offer the Victoria Horse Drawn Carriage in either standard horse size, suitable for one larger horse or team, or in a 7/8 scale version suitable for either large ponies or smaller horses, singly, or in teams.
7/8 scale Victoria with matching Shaves, storage trunk and hydraulic brakes: $5,650
Full scale Victoria with matching shaves, storage trunk and hydraulic brakes and carriage lamps and four way flashers and signal light. $6,400
Options: Matching Pole with Neck Yoke: $390
For More Info On This Item:
wagons@oxbowwagonsandcoaches.com
-

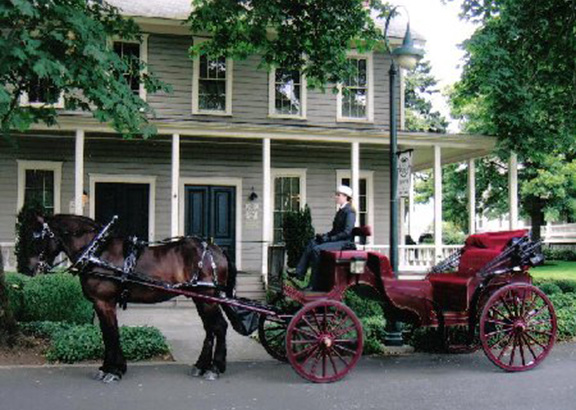

Horse-Drawn Vis-A-Vis Carriage
Available in 7/8 scale or full six passenger size.
The 7/8 size is excellent for use with large ponies or small horses, either singly or as a team.
Wood constructed body, reinforced with steel, cut-under design for ease and safety in turning.
Seven-eighths model is 6'6" in length and 63" at its widest point, outside fenders.
Height: 6' 7'
Elliptical leaf springs, one in front and two in rear. Patent dash and fenders.
Seats are 34" wide, tuft and button upholstery on passenger seats; leather like fabric on drivers seat. Headliner in folding auto top matches seat upholstery. Rear oval window.
Wood wheels are finished in channel and rubber; 30" diameter in front and 38" in rear.
Our standard colors are black body with either forest green or burgundy running gear, upholstery and headliner.
Other colors upon request. Decoratively pinstriped in gold. Rear storage trunk with brass trim; hydraulic brakes are standard features on both sizes.
Options: Matching pole with neck yoke
Wiring package
Six place Vis-a-Vis with matching shaves $7850.00 Including full fifth wheel suspension system, hydraulic brakes, wiring and lights system, 46" seats, driver's seat backrest, carriage lamps and storage trunk.
For More Info On This Item:
wagons@oxbowwagonsandcoaches.com
-
Horse Drawn Vis-a-Vis Carriage
Available in 7/8 scale or full six passenger size. The 7/8 size is excellent for use with large ponies or small horses, either singly or as a team.
Wood constructed body, reinforced with steel, cut under design for ease and safety in turning. Seven-eighths model is 6'6" in length and 63" at it's widest point, outside fenders.
Height 6'7"
Elliptical leaf springs, one in front and two in rear. Patented dash and fenders. Seats are 34" wide, tuft and button upholstery on passenger seats; leather like fabric on drivers seat. Headliner in folding auto top matches seat upholstery. Rear oval window.
Wood wheels are finished in channel and rubber; 30" diameter in front and 38" in rear.
Our standard colors are black body with either forest green or burgundy running gear, upholstery and headliner. Other colors upon request. Decoratively pinstriped in gold. Rear storage trunk with brass trim; hydraulic brakes are standard features on both sizes.
7/8 scale vis-a-vis with matching shaves: $5,850
Options: Matching pole with neck yoke: $390
Wiring package installed: $345.00
Six place Vis-a-Vis with matching shaves $7850 including full fifth wheel suspension system, hydraulic brakes, wiring and lights system, 46" seats, driver's seat backrest, carriage lamps and storage trunk.
Matching pole with neck yoke $390
For More Info On This Item:
wagons@oxbowwagonsandcoaches.com
-

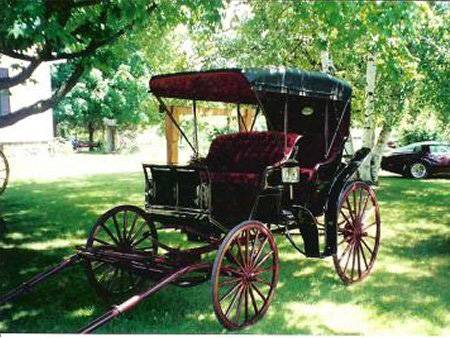

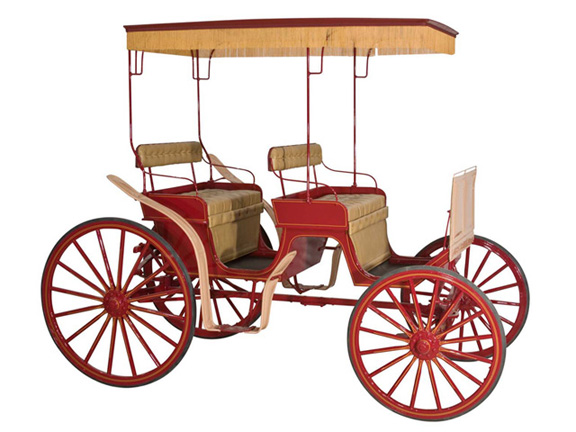

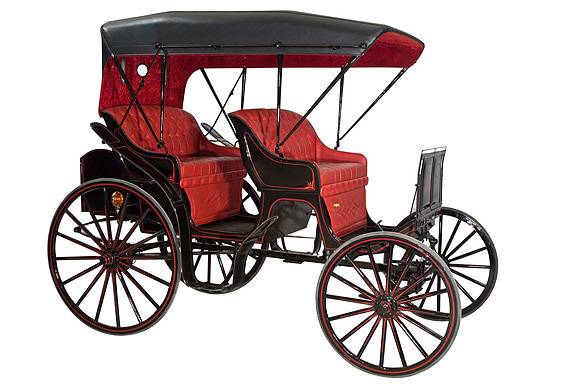

Horse-Drawn 2 Seater Surrey
Available in 7/8 scale and full six passenger surreys. Both have wood body construction, steel-reinforced 1" roller bearing axles, wood wheels with channel and rubber: folding leather-like auto top with rear oval window; headliner matches the cloth upholstery.
In stock surreys have forest green or burgundy running gears with matching tuft & button upholster; black body. Custom paint upon request. Fringed top in lieu of auto top also available. Completed vehicles with shaves or pole are pin-striped in gold.
A matching rear storage trunk with brass trim is standard on both surreys, and the six passenger vehicle is equipped with hydraulic brakes.
7/8 scale surrey with matching shaves: $4,500.
Matching pole with neck yoke: $395 (for use with large ponies or small horses: 36" wide seats).
Six passenger surrey with matching shaves: Length 10' Width 6¶ Height with the top up is 7' and seat cushion width is 42'.
Matching pole with neck yoke: $450 for standard horse size.
Complete wiring package for either vehicle, installed: $195. Turn signals, rear brake lights, flashers.
Carriage lamps are not included.
For More Info On This Item:
wagons@oxbowwagonsandcoaches.com
-

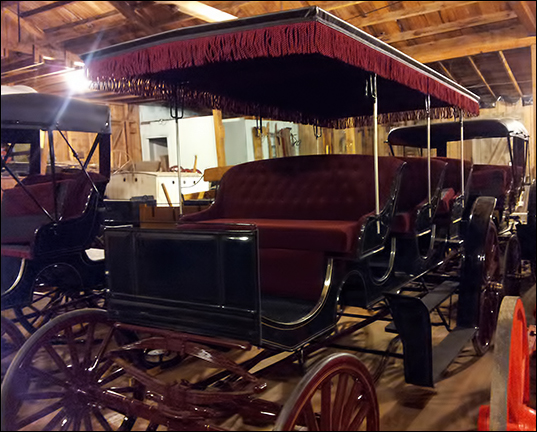

Horse Drawn 3 Seat Surrey
This vehicle is similar to our standard surrey, but with an additional passenger seat. Surreys can be built two, three or four seaters. They all have the same heavy duty wood body with steel frame, cut-under design for ease and safety in turning.
Wheels are finished in channel and rubber, measuring 3/4" diameter in front and 44" in rear. Seats measure 46" across.
The fringed top is constructed of a leather-look material, top-stitched, with four-inch matching fringe. Mounted on six iron poles, painted. Headliner on fringed top matches tuft & button upholstery. Has patent dash and fenders.
Shaves (pin-striped and matching the surrey) are included in the base price.
Matching pole and neck yoke optional.
The three-seated surrey comes equipped with hydraulic brakes and a matching rear storage trunk with brass trim. Brass hubs are another option.
Three-Seated Fringe-Topped Surrey: includes shaves, hydraulic brakes, rear trunk.
Matching pole and neck yoke $490.
ELLIPTICAL SPRINGS are carriage springs made up of sets of over-lapping steel plates hinged together. Invented by Obadiah Elliott of England, in 1804, the springs revolutionized carriage building for the first time, allowing construction without using heavy wooden or iron bars to connect and brace front and rear axles.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
Horse Drawn Hearse
-

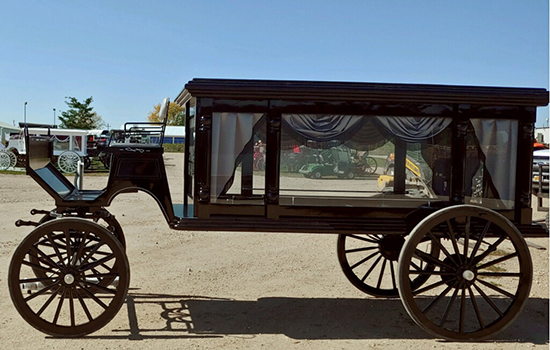

Horse Drawn Black Acrylic Hearse
This horse drawn hearse is painted with an acrylic black enamel paint.
It can be painted black or white or any color of your choice. The curtains can be the same color as the hearse or a color or your choice.
Hearse comes complete with:
Full fifth wheel.
Hydraulic brakes.
Paint and upholstery.
Cathedral or straight glass, both styles
are beveled.
Lamps are sold separately.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Horse Drawn White Acrylic Hearse
This hearse is painted with an acrylic black enamel paint.
It can be painted black or white or any color of your choice. The curtains can be the same color as the hearse or a color or your choice.
Hearse comes complete with:
Full fifth wheel.
Hydraulic brakes.
Paint and upholstery.
Cathedral or straight glass, both styles
are beveled.
Lamps are sold separately.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Horse Drawn Coffin Wagon
This wagon is a example one of our custom pieces.
The wagon was built to be used as a hearse (for those of you who want to offer a more country type of funeral).
The Coffin Wagon is built of hardwood. It can be built to fit any size horse and made to hitch with single horse shaves or team pole.
The wagon can be finished with a clear coat or stained and clear coated in a western finish or just painted a color of your choice.
It can be built with hydraulic brakes or the antique rub brake.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com

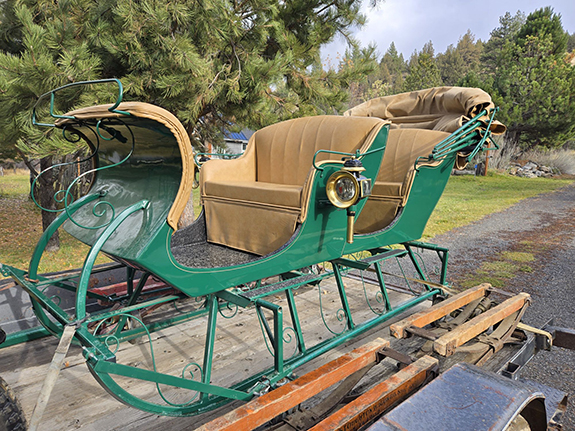

Horse Drawn Sleighs
-

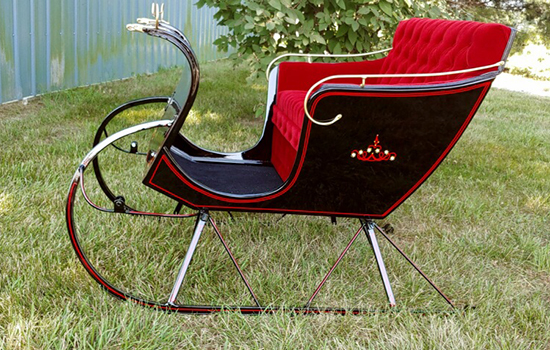

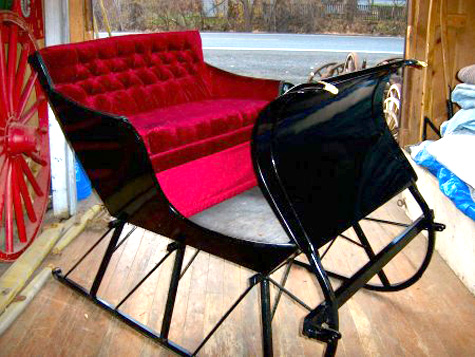

Portland Single Horse Drawn Sleigh
New, Portland Style single horse cutter with shaves.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

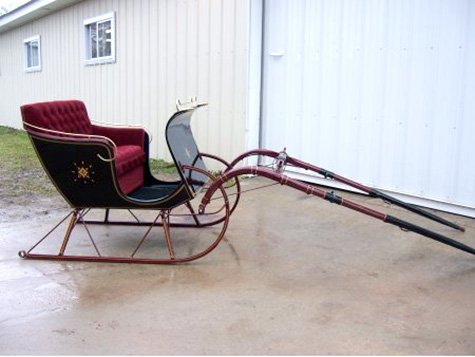

Piano Box Horse Drawn Sleigh
Single seat cutter is a 19th Century square or piano box style.
Body: All wood construction, hardwood framing, gently curved sides and dash.
Overall length: 68'
Seats: 42" wide, upholstered in velvet-like fabric, tuft & buttoned.
Brass trim on runners, brass rein rail.
Steel runners have replaceable skid shoes.
Decoratively pin-striped in gold; shaves included.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Horse Drawn Cutter Sleigh
19th Century square or Horse Drawn Piano Box style.
Body: All wood construction, hardwood framing, gently curved sides and dash. Overall length: 68".
Seats: 42" wide, upholstered in velvet-like fabric, tuft & buttoned.
Brass trim on runners, brass rein rails.
Steel runners have replaceable skid shoes.
Decoratively pin-striped in gold; shaves included.
Single Seat Cutter with Matching Shaves
"The horse drawn sleigh is an excellent example of a device which was developed and improved by Americans. As traffic in America began to shift from rivers to roads in the mid 1800's, American carriage manufacturers, in order to economize horse power, invented machines that shaped tough and springy native woods; whitewood from the tulip tree, and hickory, into the lightest of durable carriages.
The spidery wheels that frightened Europeans withstood our rough roads, thanks to precisely machine spokes fitted into precisely drilled hub mortises, all enclosed in steel tires set by steam power.
This extraordinary technical ability tempted some designers to be genteel to the point of flossiness in concocting family coaches that the Smith's purchased to outdo the Joneses, but the strictly practical buckboards, buggies and surreys, on the other hand, are designed with a spareness as elegant as that which characterizes Shaker furniture.
"Such simplicity fits today's belief that less is more." Paul Downing, New York, 1969.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

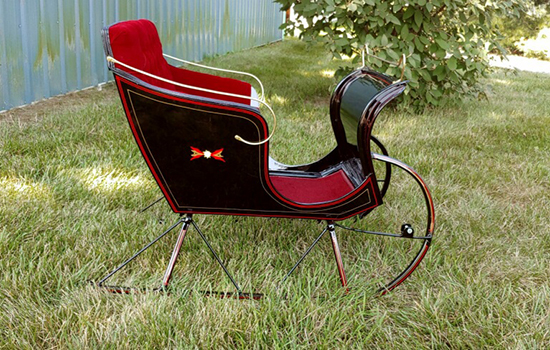

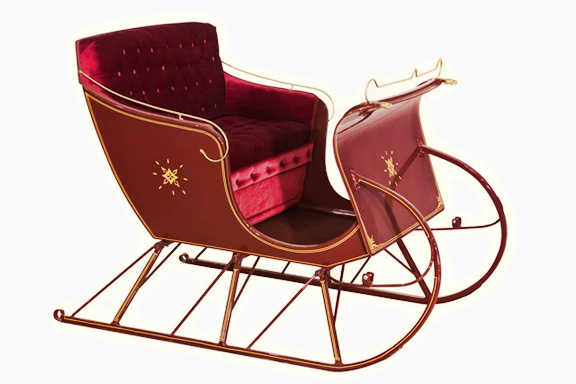

Pony Sleigh
Pony sleigh comes complete with crushed red velvet upholstery, black body, red shaves and runners, with gold pin-striping.
Height 39".
Width 36".
Length 41-1/2".
60" cross bar to shaves tip.
Overall length of shaves is 60".
If wanting to have it ship to you: Call for crating prices.
Approx. weight is 250lbs.
Size of crate 72" length
36" width
42" height
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

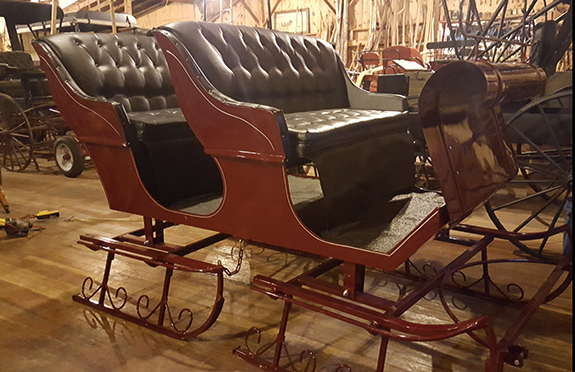

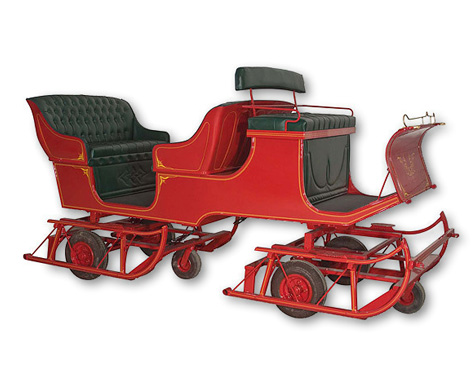

2 Seat Horse Drawn Sleigh
This is a two seated sleigh that comes with the wheel kit for easy moving when there is no snow.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com

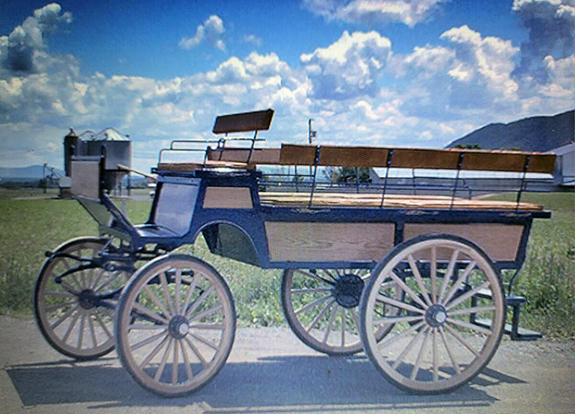

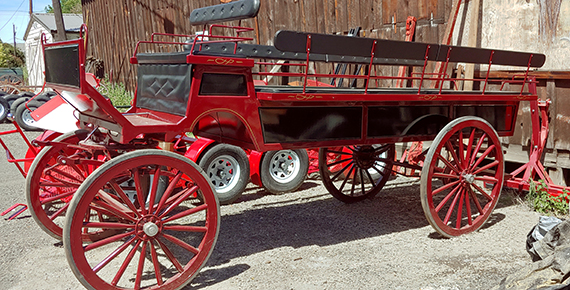

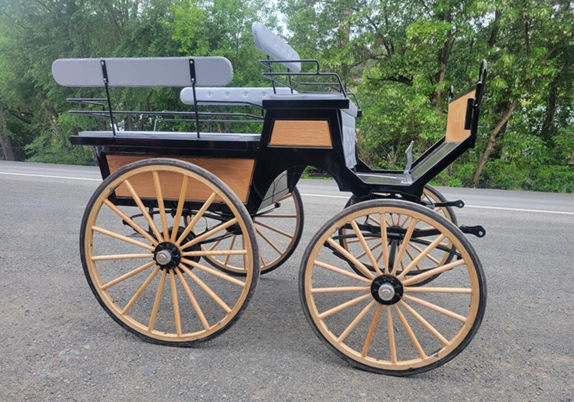

Horse-Drawn Wagonettes
-

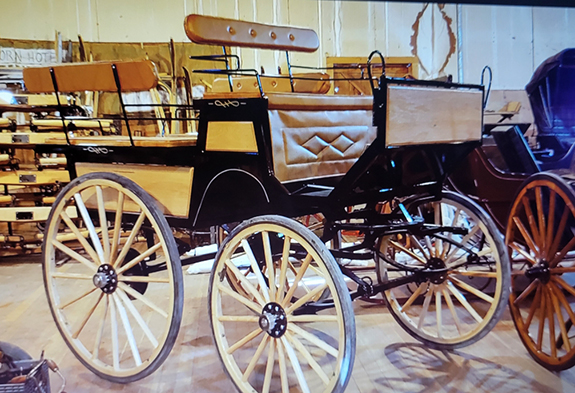

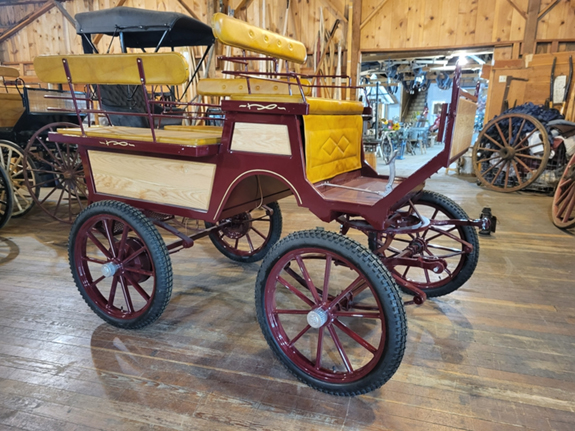

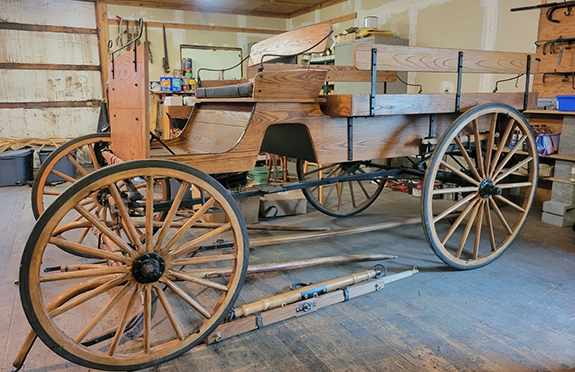

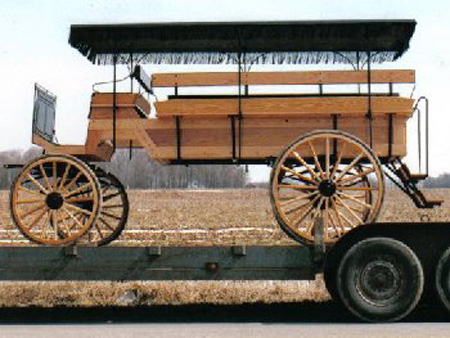

Horse Drawn Wagonette
Standard horse, or draft size Wagonettes with full fifth wheel.
All wood construction, steel reinforced, roller bearing axles, rear steps.
Cut under design for ease and safety in turning.
Standard size has 40" front wheels, 44" rear, partial fifth wheel
With two 60" rear passenger seats (sides), 40" drivers seat.
Draft size wheels measure 44" rear, 38" front.
Full fifth wheel, two 72" rear passenger seats, 46" driver's seat, hydraulic brakes.
It can be finished natural, or stained and sealed, or your choice of paint.
Upholstered in leather-like material.
Shown here with the fringe top, not included in price.
Matching pole and neck yoke extra.
Wagonette, draft horse size, with matching shaves, brakes extra.
Matching pole and neck yoke extra.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

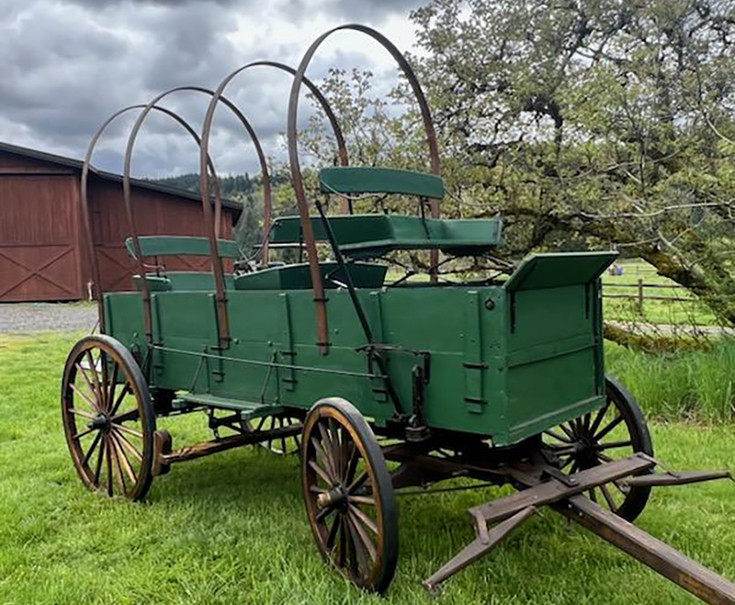

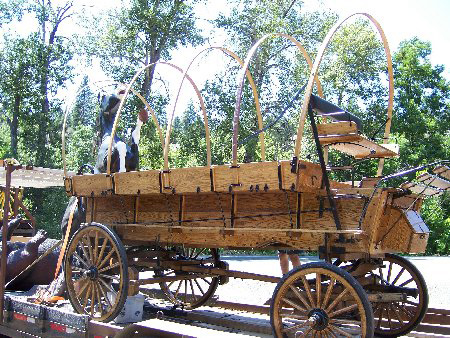

Horse Drawn Wagonette With Chuck Box
Complete 12 foot, 16 passenger horse drawn covered wagon box with five bows, tarp, spring seat, tool box.
2 step back entrance with two side seats with a set of four cushions.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

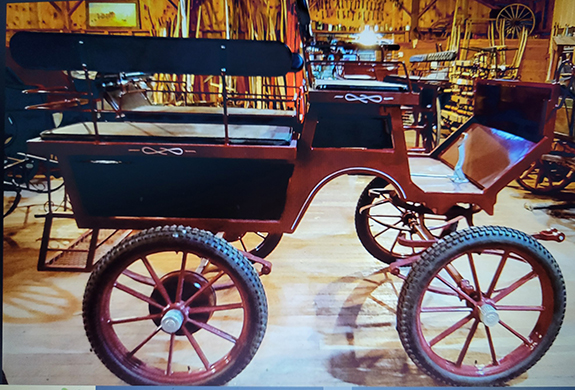

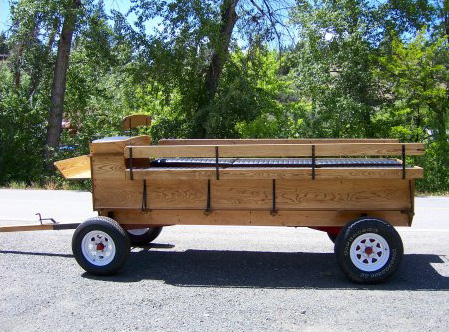

Wagonette With Rubber Tire Gear and or Bobsled
This wagonette body is unique, and saves you money.
It is built to fit on bobsled gear for winter use and rubber tire gear the rest of the time.
You only have to change out 4 bolts and move wagonette body to interchange from bobsled to rubber tire gear.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
Horse Drawn Miniatures
-

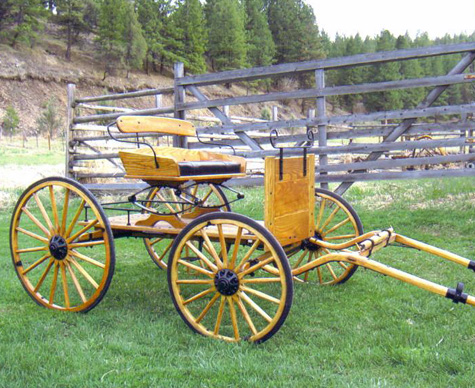

Horse Drawn Miniature Buckboard
The Horse Drawn Miniature Buckboard comes with a hardwood-built body.
It can be built for any size miniature horse or pony.
It can be made to hitch with a single pony shaves or team pole.
The wagon can be finished with a clear coat or stained and clear coated, in our new western finish or a paint of your choice.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Pony Market Wagon
This is a little under cut Pony Market Wagon.
It can be made varnished or painted.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

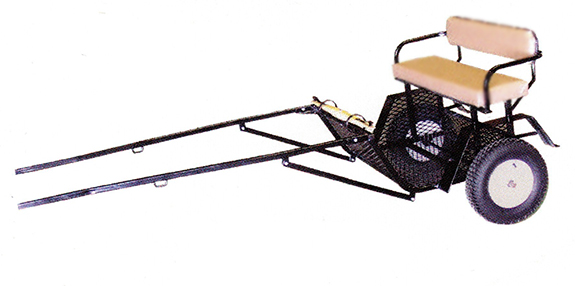

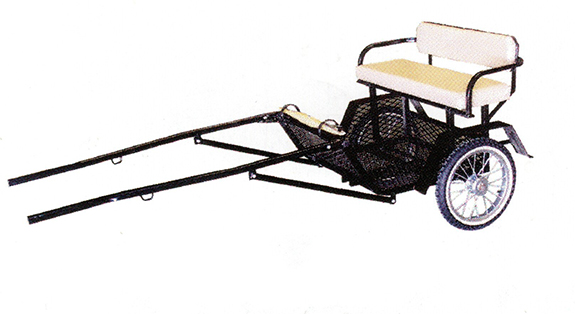

Horse Drawn Miniature Wire Wheel Cart
This Horse Drawn wire wheel cart come in two sizes:
Miniature to Shetland.
Welch to Cobb size.
These carts can be shipped by UPS.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
Horse Drawn Gigs & Carts
-

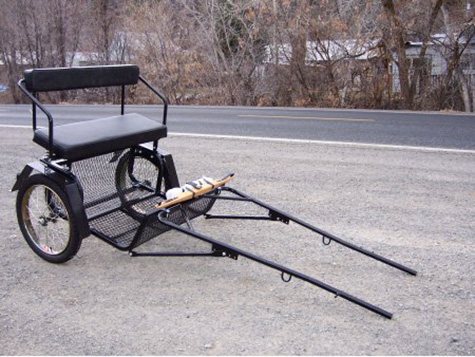

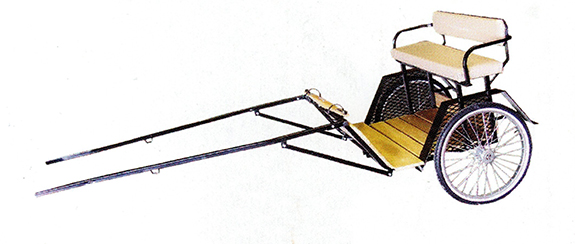

Horse Drawn Wire Wheel Cart
This wire wheel cart come in two sizes:
Mature to Shetland.
Welch to Cobb size.
These carts can be shipped by UPS.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

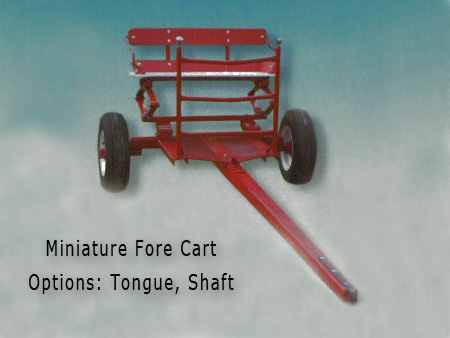

Horse Drawn Wire Wheel CartMiniature Fore Cart
All Horse Drawn fore carts and wagon gears are powder coated, so not only will you have a quality product, but also one with a beautiful finish.
All Horse Drawn fore carts can be upgraded to include hydraulic brakes, fenders or bench seats.
One or two piece shafts are also available.
They come standard with a team pole.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

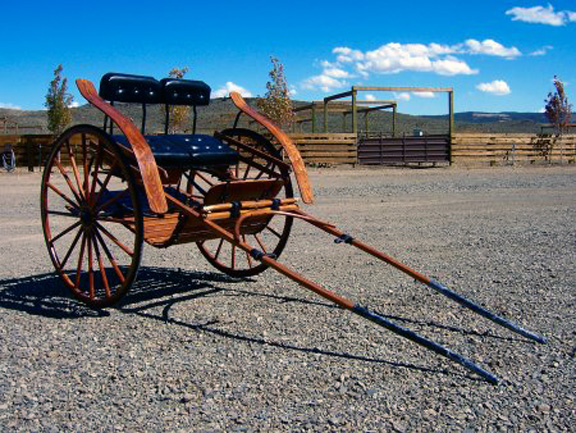

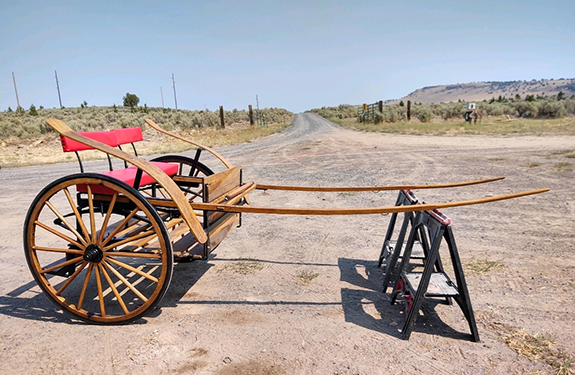

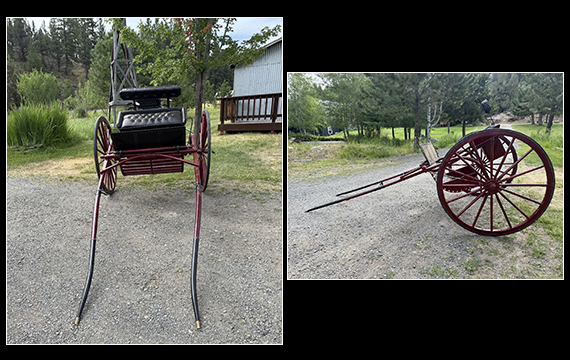

Horse Drawn Meadowbrook Cart
The following describes our standard horse size Horse Drawn Meadowbrook cart; draft horse and pony sizes are also available.
Overall length: 11' 2" including shaves.
Width: 5' 4" front fender top to ground.':
Axles: 1" roller bearing.
Wheels: 48" wood, channel and rubber.
Seats: two separate but touching seats, upholstered in leather-like material with tuft and button design.
Left seat lifts up for easy entry from rear, behind the wheel for safety.
Body: Slatted floor of round edged boards, framed with hardwood, steel-reinforced, natural wood finish.
Features: Wood dash, storage compartments on dash, storage trunk with brass trim under passenger seat. Brass rail.
Optional: Trimmed in brass.
Available sizes:
Draft Size
Standard Size
Mid-size
Pony Size
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

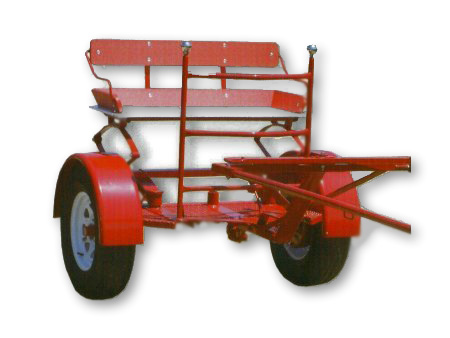

Haflinger Fore Cart, Standard Horse
All Horse Drawn fore carts and wagon gears are powder coated, so not only will you have a quality product but also one with a beautiful finish.
All fore carts can be upgraded to include hydraulic brakes, fenders or bench seats.
One or two piece shafts are also available.
They come standard with a team pole.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

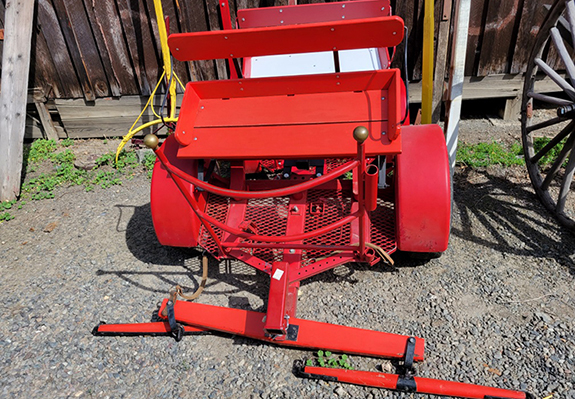

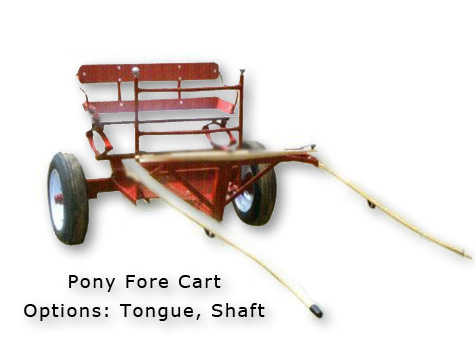

Pony Fore Cart
All fore carts and wagon gears are powder coated, so not only will you have a quality product, but also one with a beautiful finish.
All fore carts can be upgraded to include hydraulic brakes, fenders or bench seats. One or two piece shafts are also available.
Carts come standard with a team pole.
For More Info On This Item:
wagons@oxbowwagonsandcoaches.com
-

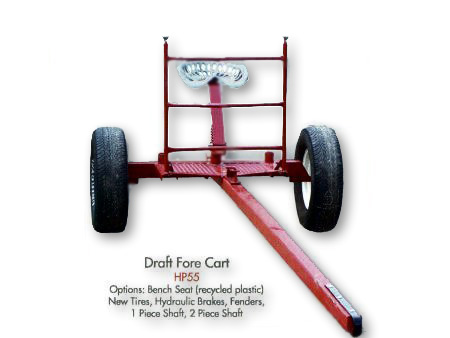

Fore Cart, Draft Horse
All fore carts and wagon gears are powder coated, so not only will you have a quality product but also one with a beautiful finish.
All fore carts can be upgraded to include hydraulic brakes, fenders or bench seats.
One or two piece shafts are also available.
They come standard with a team pole.
Price: Call
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
Contact us by phone, e-mail or fax for more information to place an order.
